QN High efficient Milk Tomato Ketchup Vacuum Industrial Evaporator Vacuum Industrial Juice Machine vacuum evaporator

FOB Reference Price:Get Latest Price
US $1,000-10,000 / Sets | 1 Set/Sets vacuum evaporator (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Food Processing
Power Source:
steam
Process:
Vacuum Distillation
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
ONW
Model Number:
QN
Voltage:
380-440
Power(W):
TBD
Dimension(L*W*H):
TBD
Weight:
TBD
Certification:
TBD
Warranty:
TBD
After-sales Service Provided:
Engineers available to service machinery overseas
type:
internal recycle vacuum evaporator
feeding 1:
fruit juice
feeding 2:
milk
feeding 3:
tomato ketchup and others
capacity:
50-1000L/h
material 1:
stainless steel 304 or 316L
material 2:
carbon steel
material 3:
titanium
agitator:
yes
surface treatment:
matt polsh and mirror polish
SupplyAbility
SupplyAbility:
11 Set/Sets per Month vacuum evaporator
Packaging & Delivery
Packaging Details
plastic film and cotton cloth and wooden cases for the vacuum evaporator.
Port
Shanghai/Ningbo
Lead Time :
Shipped in 30 days after payment

.jpg

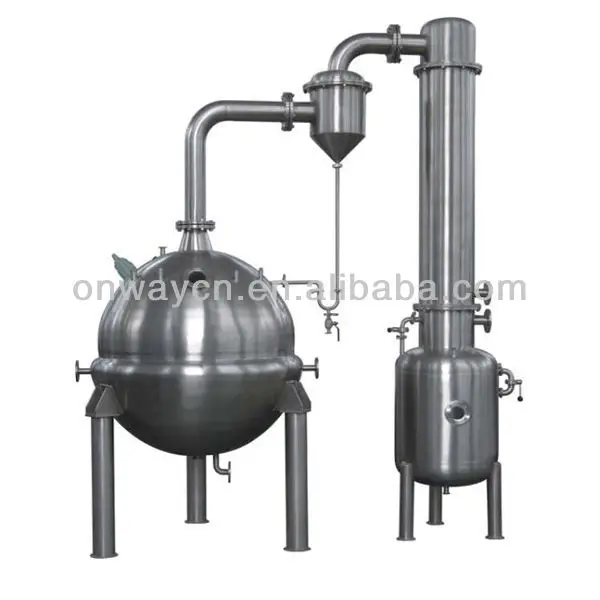

Structure- vacuum evaporator

vacuum evaporator  primarily contain concentration tank, condensator and gas-liquid separator. The concentration under reduced pressure brings short time of concentration and prevent the destruction of effective content in the thermal sensitive material. The fact that the part in contact with the material is made with stainless steel brings qualified anti-corrosion performance, meeting with the GMP standard.


Application- vacuum evaporator
QN series vacuum evaporator  (concentration tank)serves to  Chinese herbal medicine, western medicine, food, glucose, juice, candy, chemical engineering etc.It is very
suitable for the high viscosity and very thickness material (see below photos) .




Technology parmeter- vacuum evaporator



QN-300

QN-500

QN-700

QN-1000

amount of evaporationkg/h

70

120

145

195

nominal capacity(L)

300L

500L

700L

1000L

Steam pressure(Mpa)

0.09

Vacuum degree(Mpa)

-0.08

Heat area(m2)

1.3

1.5

2

2.8

Condensator area (m2)

2.4

3

3.5

4

Size

Length×width×heigh

1900×1100×2300

2030×1200×2500

2100×1200×2600

2335×1520×2760

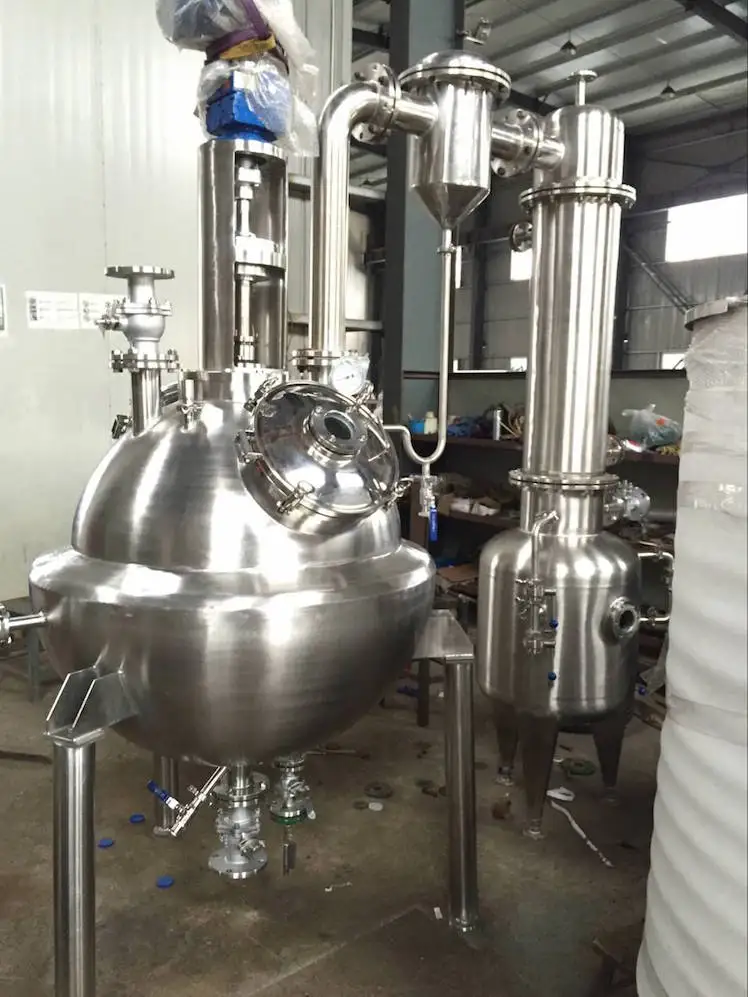

Below is the vacuum evaporator to the American customer :(it is 1000L/H)

1000L ball evaporator.jpg



Below is the vacuum evaporator to the New Zealand customer :(it is 300L/H)

photo 2.jpg
